data service

1、 Function description

Add a new data record for the selected data table in the commander's data service.
Note: this component is applicable only after the data service function of commander is enabled.

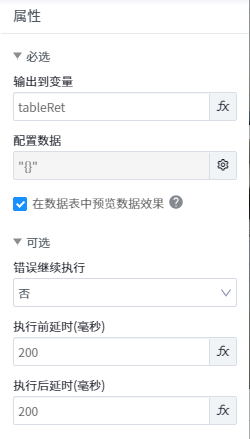

2、 Attribute description

• Output to variables: outputs configuration data to variables.
• Configuration data: the configuration needs to be stored inCommander-Business data of data service.

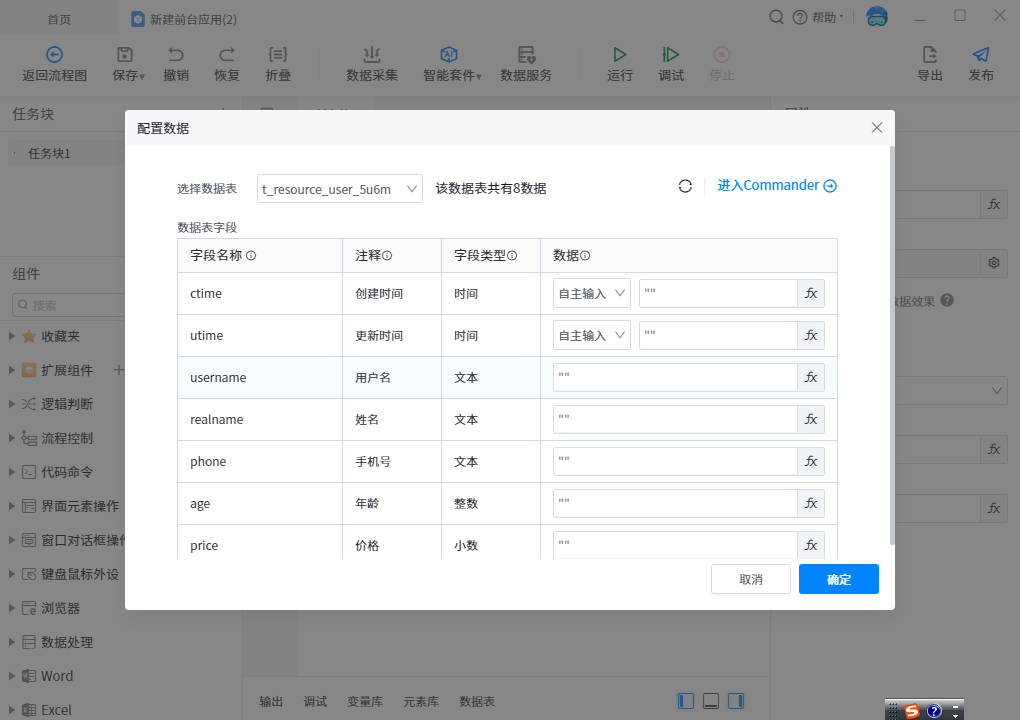

  Click Configure to pop up & ldquo; Configuration data & rdquo; Popup:


  •  Select data table: Select & ldquo; Commander data service data collection RPA collection & rdquo; For the new data table in, you can only select the data table with permission under the login account.
  • Data table field: the data table field is dynamically updated according to the selected data table. You need to be in & ldquo; Data & rdquo; Select / fill in the data of the corresponding field in the column. Variables and constants are supported.
  • Refresh button: after refreshing, the currently filled data will be cleared, which needs careful operation.
  • get intoCommander: Click to enterCommander-Data service to manage data collection.

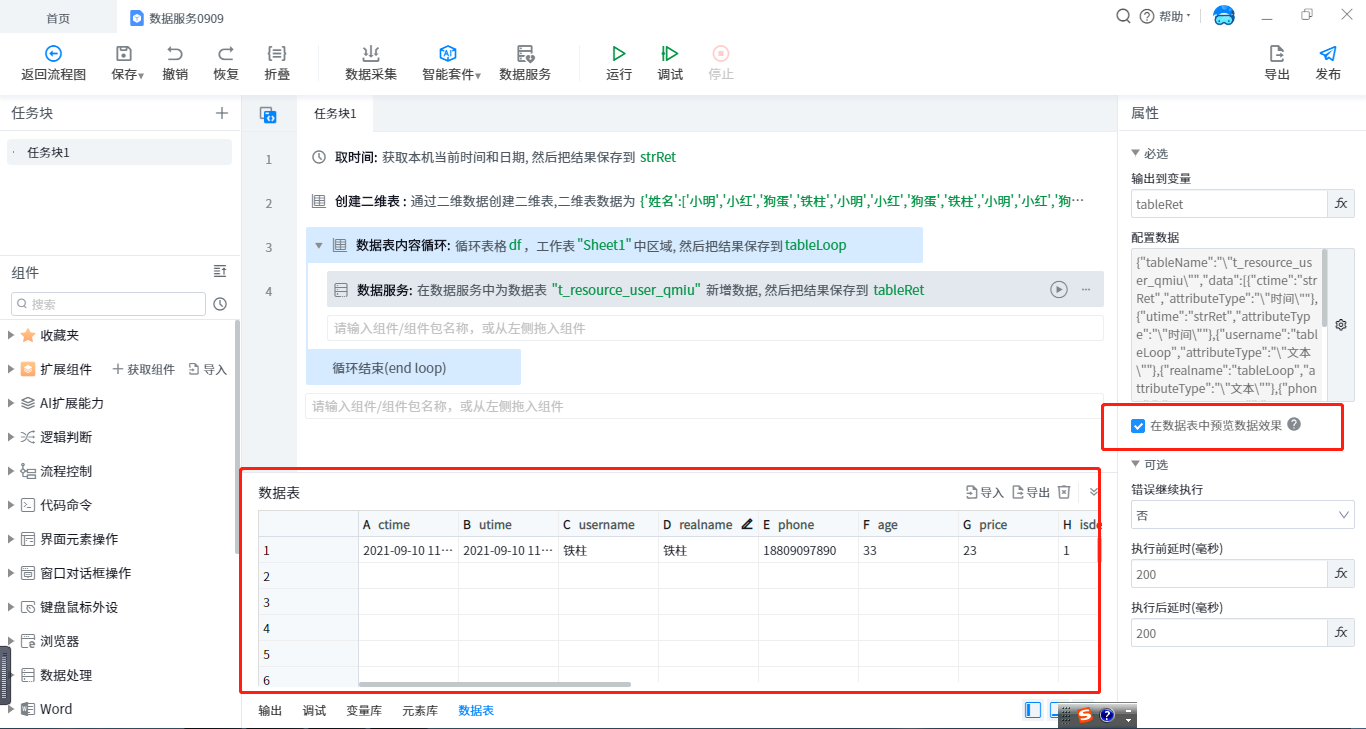

• Preview data effect in the data table: if it is checked, the data result after the component runs will be displayed in & ldquo; on the console; Data sheet & rdquo; Tab. Note: only the results of the last run are displayed.

3、 Use example

When you have openedCommander-Data service function, andCommander-data service -At least one has been created in data collectionRPAAfter collection, it can be used normallyFactory-Data service function.

Use steps:

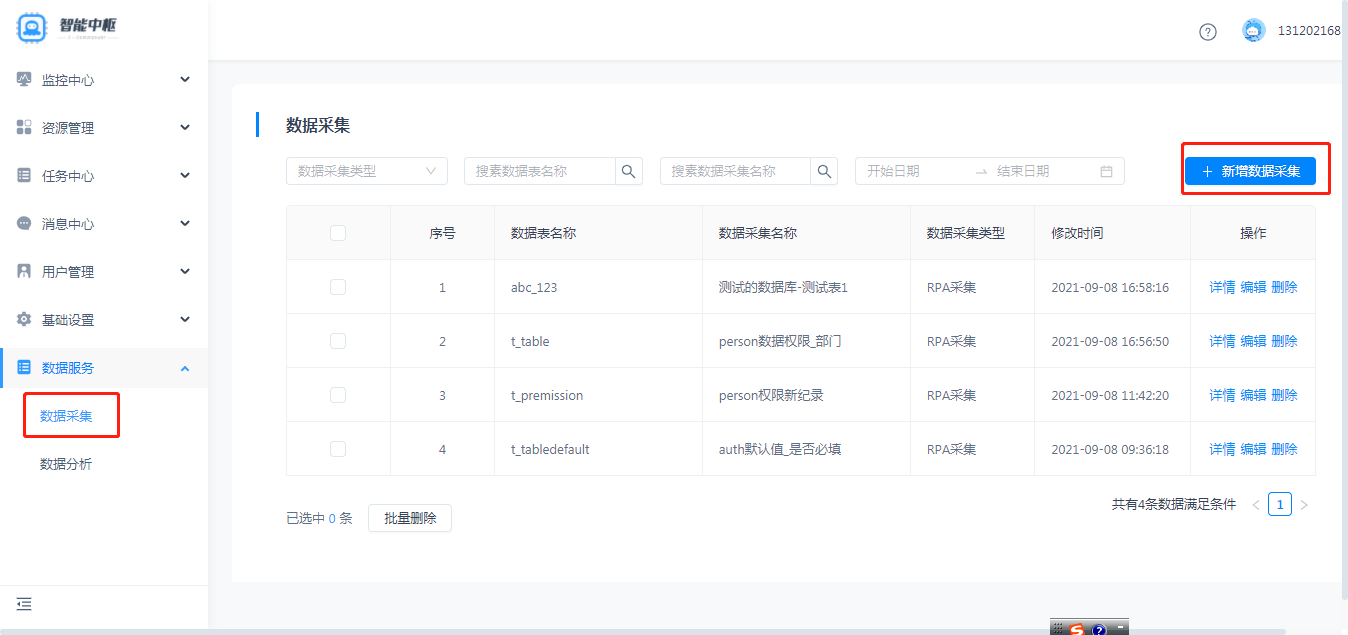

• stayCommander-data service -In data collection, click AddRPACollection: fill in collection rules according to business needs.

• stayFactoryDrag the data service component into the, and configure the business data by selecting the data table and filling in the field data.

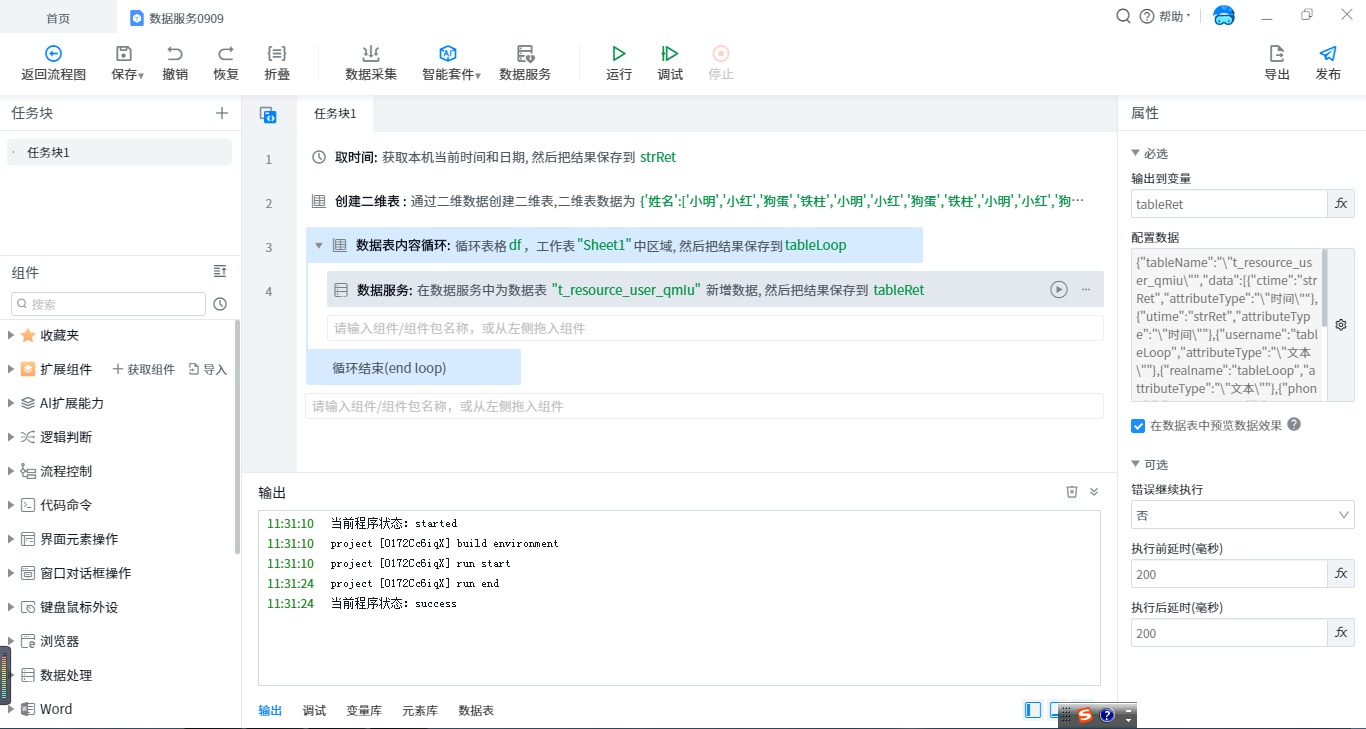

• Click Run to store the business data in theCommanderThe data service can be used for subsequent analysis.
