Component design area

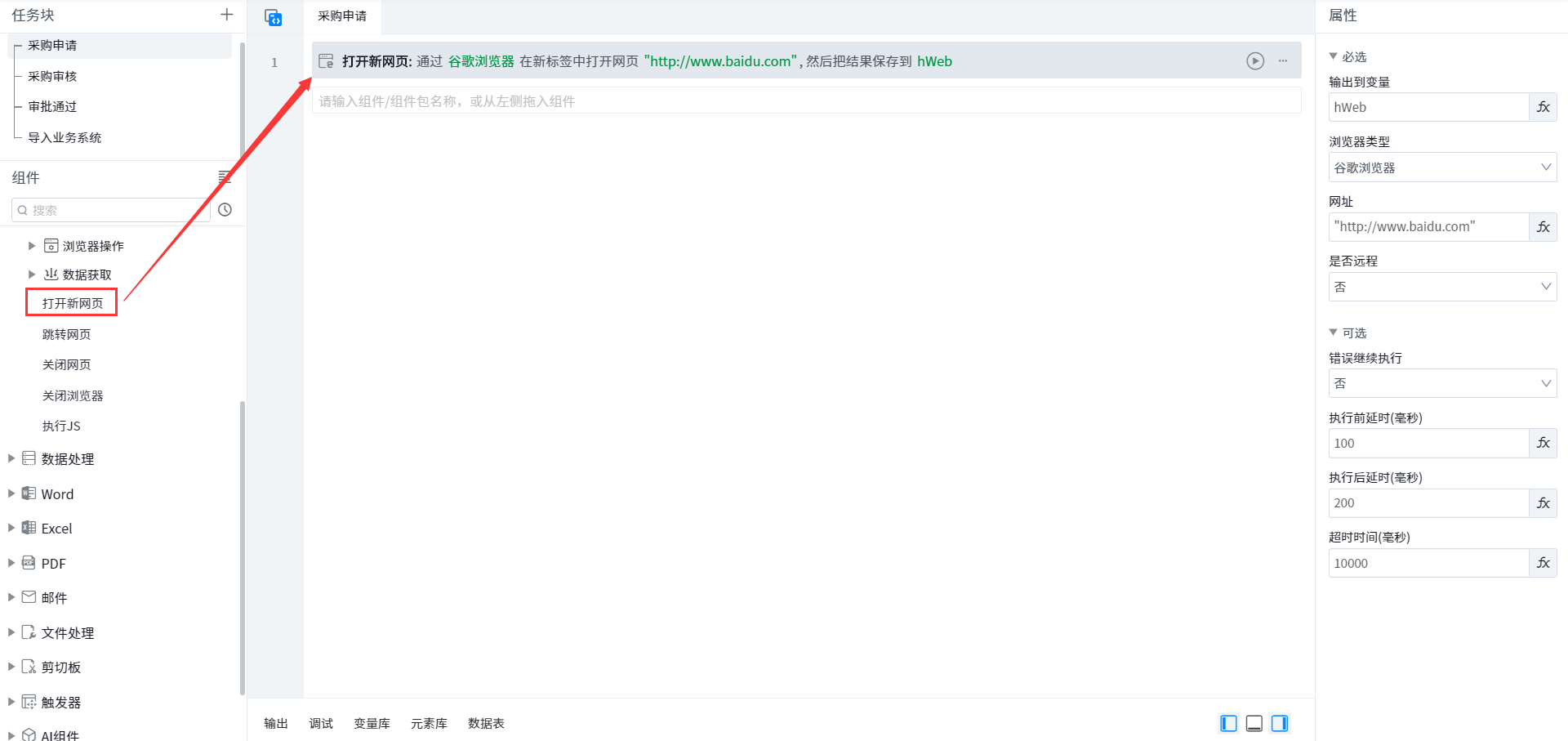

1. Drag and drop the process module to build the whole operation process of the process block. The sequence of each component determines its execution sequence. You can select an action by dragging with the left mouse button to move the position. To delete a component, select the component and press Delete.

2. How the component behaves in the current business process and its parameters are set through intermediate editing and attribute setting on the right. Each component is basically a piece of encapsulated code, which can support the parameter definition of attributes and realize the personalized use of components. Thus, the content displayed in the middle editing area is & ldquo; Component function description + parameter definition operation entry & rdquo;, Can you understand what it does? And to whom?

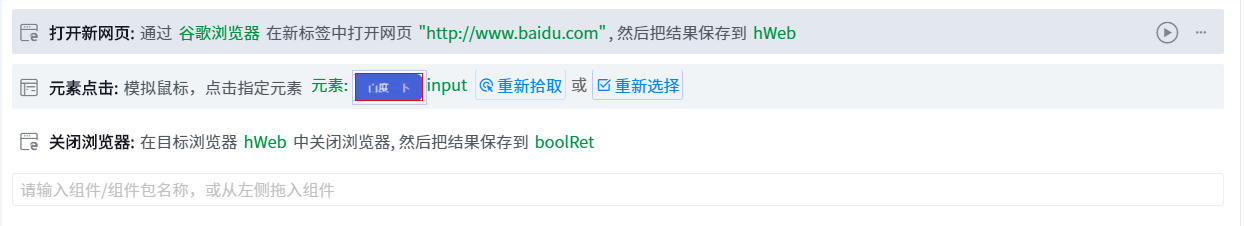

3. In the middle editing area, the definable parameters or variables will be visually differentiated or displayed as clickable buttons. For some operations, you can click to set or operate directly in the middle area; For others, you need to enter and configure through the attribute column on the right to realize component setting. The values in the middle and right are synchronized. Edit one place and update the information in another place.

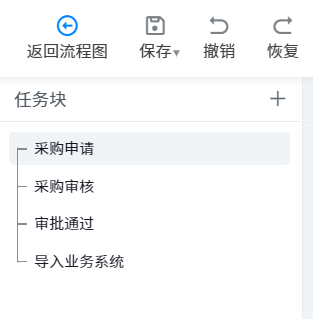

4. In the middle editing area, you can edit the details of the process block and return to the flowchart editing of the previous step. Click the icon in the upper right corner to return to the main flow chart. A second confirmation will pop up to confirm whether to save the current editing content, and then execute the return action. You can also directly add a process block in the component editing interface and click & ldquo; in the upper right corner+& rdquo; No., a new process block will be created directly, and then the component of the process block will be edited.
