Element library

Element library refers to the management function of managing the elements used in the current process application. It can manage all the elements picked up in the currently developed process application, which can be displayed and edited here, or click [t] icon to rename the selected elements; You can also click the small pen Icon to view the element details and edit the element (element editor). Element editing supports the use of wildcards and variables; You can also click to preview the large image of the element.

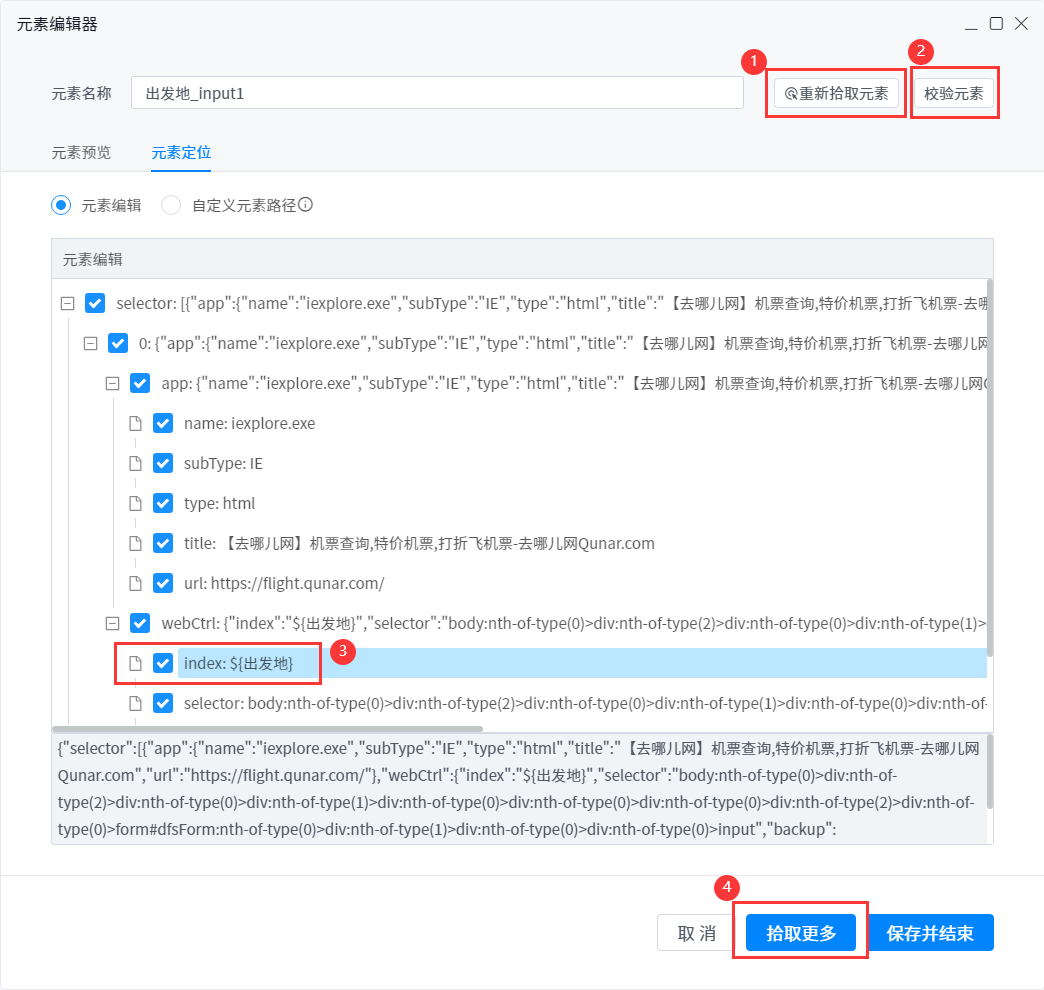

1、 Element editor

You can pick the element again, verify whether the element exists, edit the current element, or pick more elements. In element editing, you can set the current element with wildcards or global variables.

•Pick elements again:Click the re pick element button to directly enter the element picking interface. If you save after picking, the current element will be replaced, and all elements of components that reference this element will be replaced with re picked elements.

•Check element:Clicking the check element will hide the pop-up box of the current element editor and find the current element in the interface. If it is found, it will be marked with a red box and flash. After the verification is completed, it will return to the current element editor interface again and prompt that the verification is successful.

•Add variable:The element editor supports the use of existing global and local variables in the factory, excluding the commander variable, which can be entered manually. Use the format: ${variable name}.

•Pick more:Click the pick more button to enter the element picking interface to pick elements. The picked elements will be saved to the element library and will not replace the currently edited elements.
