Self built component sharing

1、 What is component package export

Component package export refers to the export of the component package created on the factory homepage in ZIP format. After export, the zip package can be shared with others. The shared component package cannot be developed again and can only be used in the development process.

2、 How to export component package

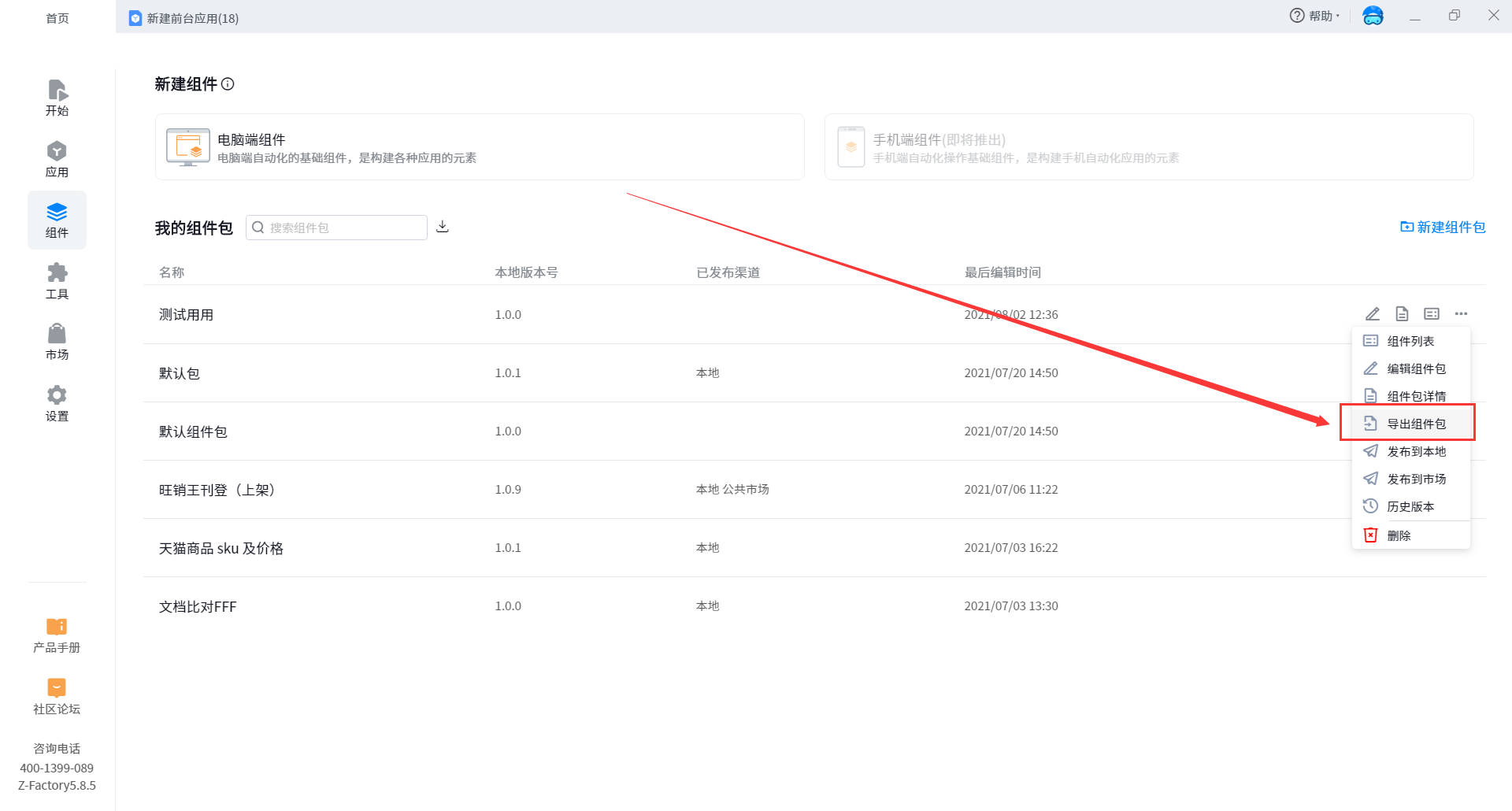

1. Home page - components, select a component package to export, and click more to see the export component package options, as shown in the following figure.

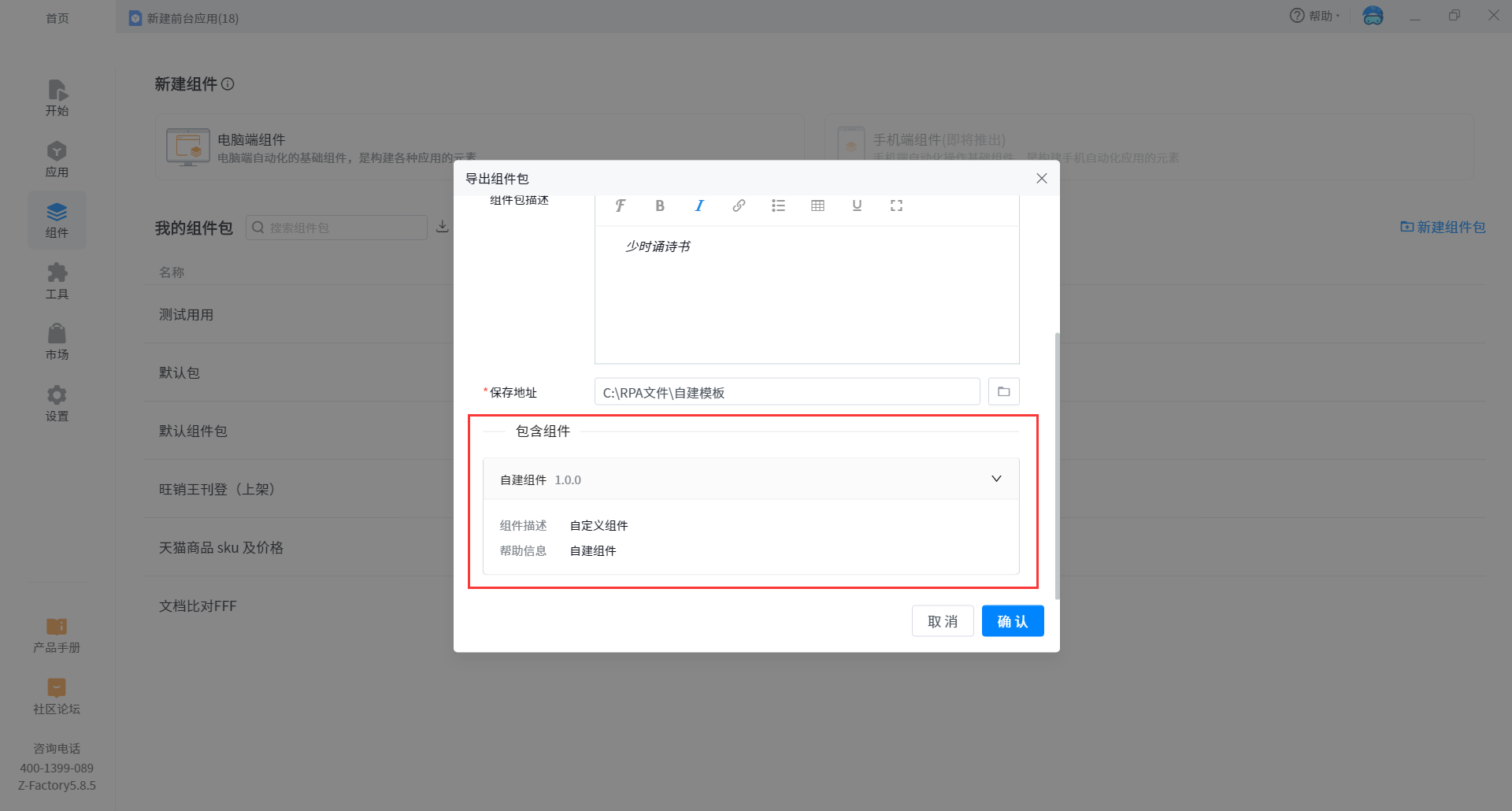

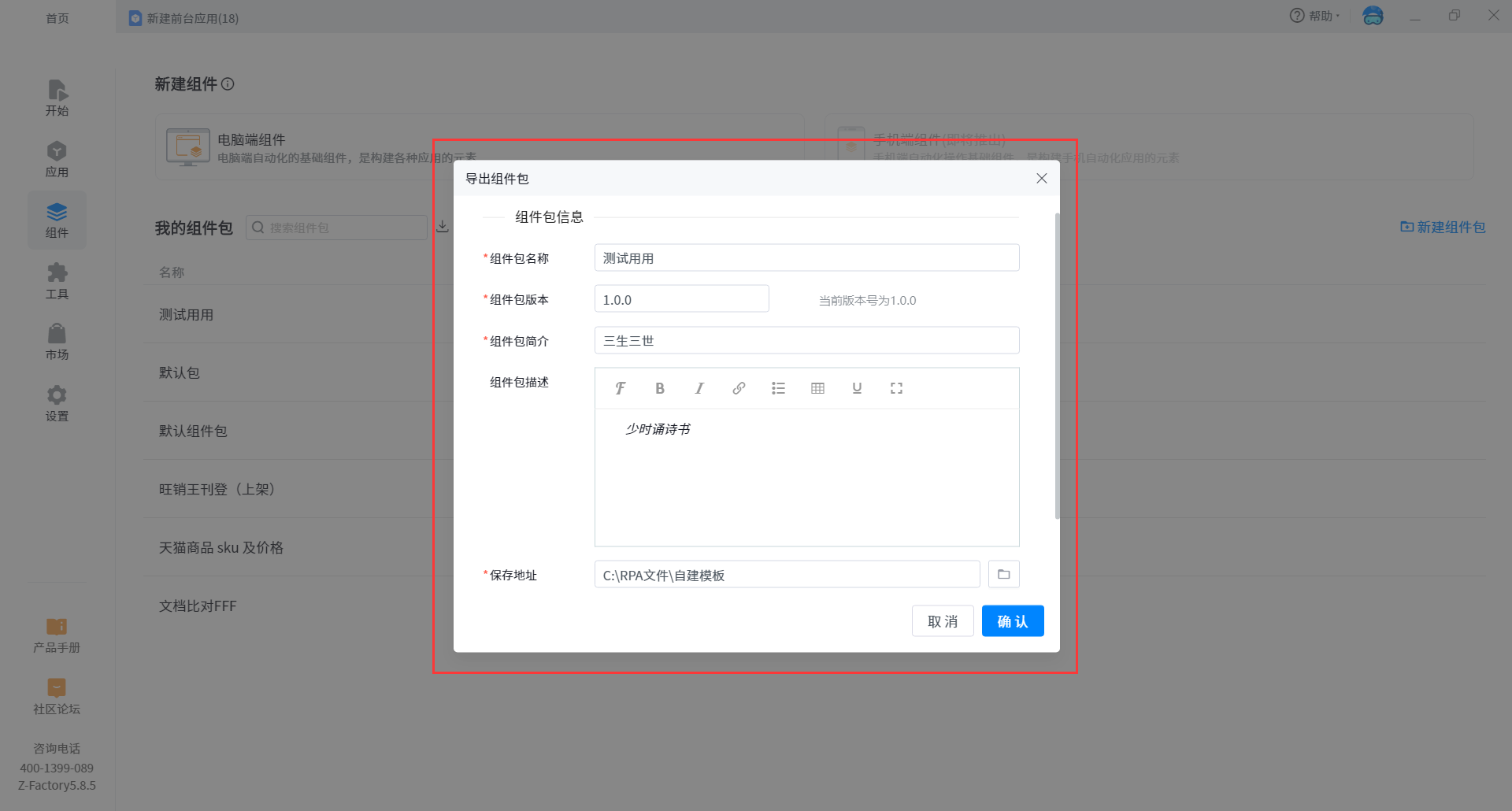

2. Click export component package to pop up the basic information box of export component package. In the information box, you can see the current component package name, version, brief introduction and contained components, so that you can confirm the information again.

3、 How to use [component package export]

The format of exported component package is zip package, which can be shared with others with factory editor. The steps are as follows:

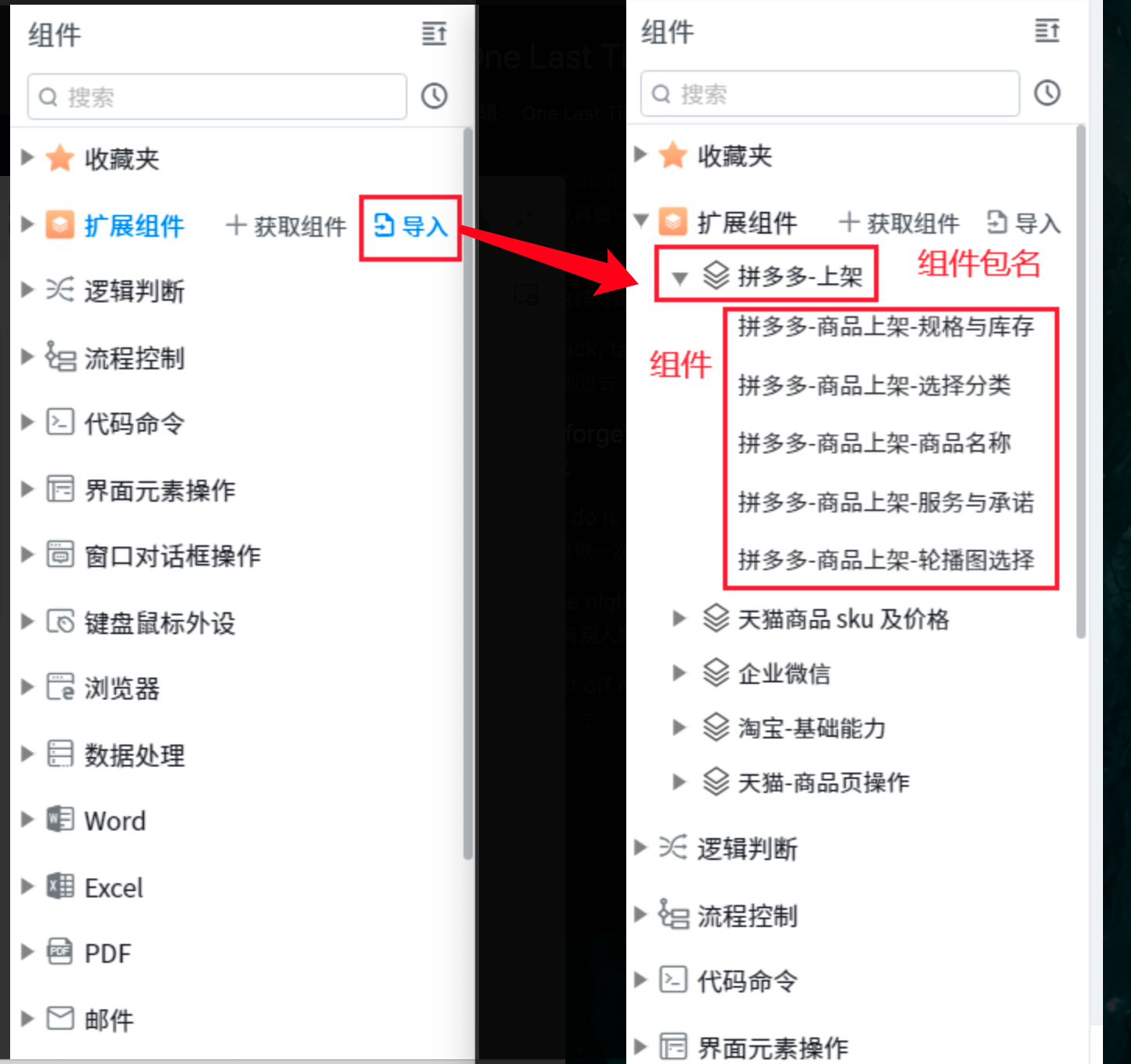

1. Enter the factory process application development page and click & ldquo; Import & rdquo; Button, you can select the currently obtained component zip package and import the component package into the local warehouse. At the same time, you can view the imported component package under the extended component menu, as shown in the following figure.

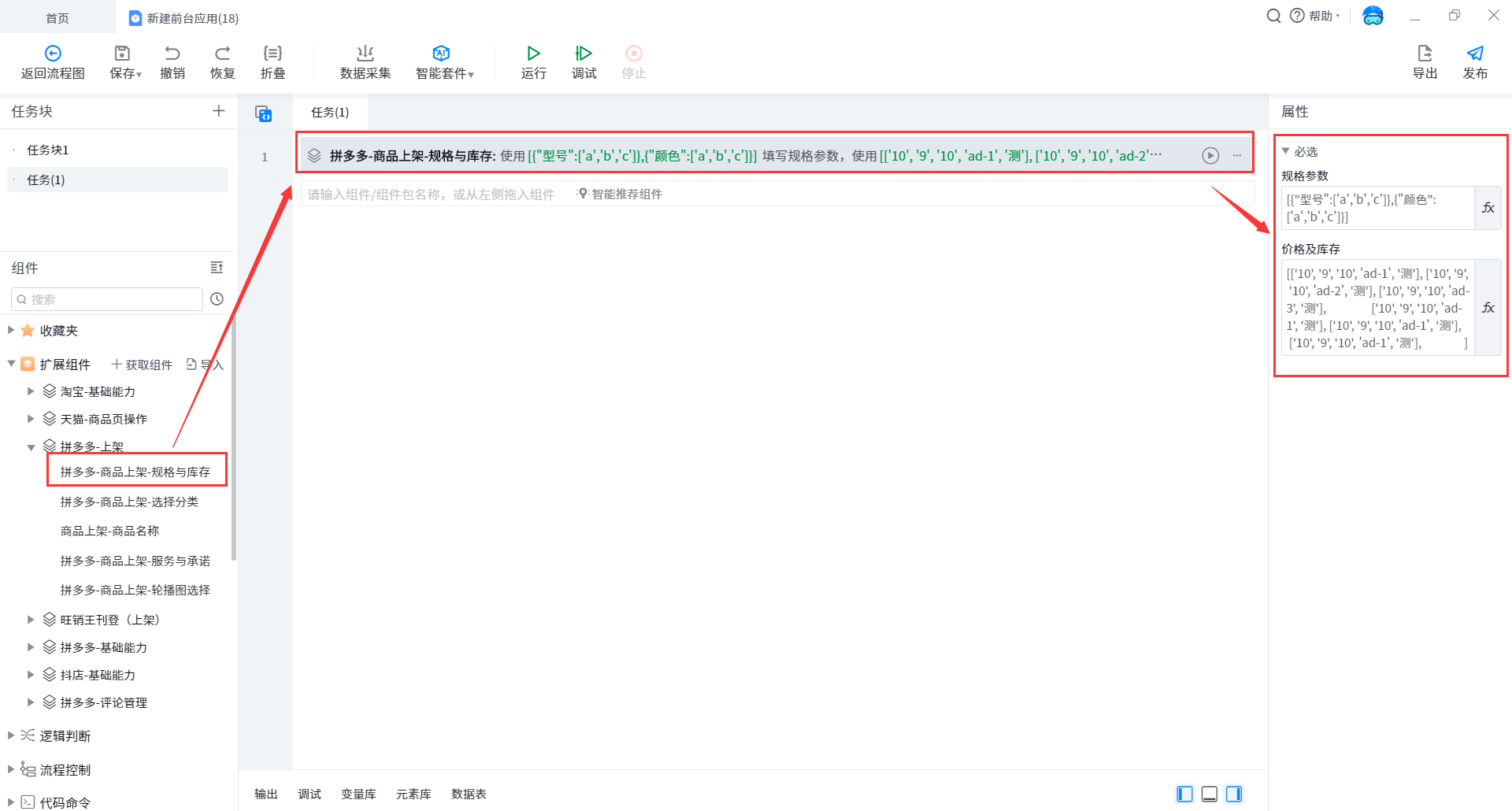

2. After the imported components are packaged, you can drag the components to the editing area to develop process applications.

4、 What is component package publishing

For the components created by developers themselves, we provide the function of publishing to local use (completed in this period), and also support publishing to public market and enterprise internal market (under planning). This function allows developers to share their developed components in the public market so that others can see their abilities, but also share them with other colleagues, The reuse rate and efficiency are greatly improved.

In this issue, we provide publish locally, that is, after developers develop self built components, they can publish component packages locally for their own use when developing applications.

5、 How to publish component package

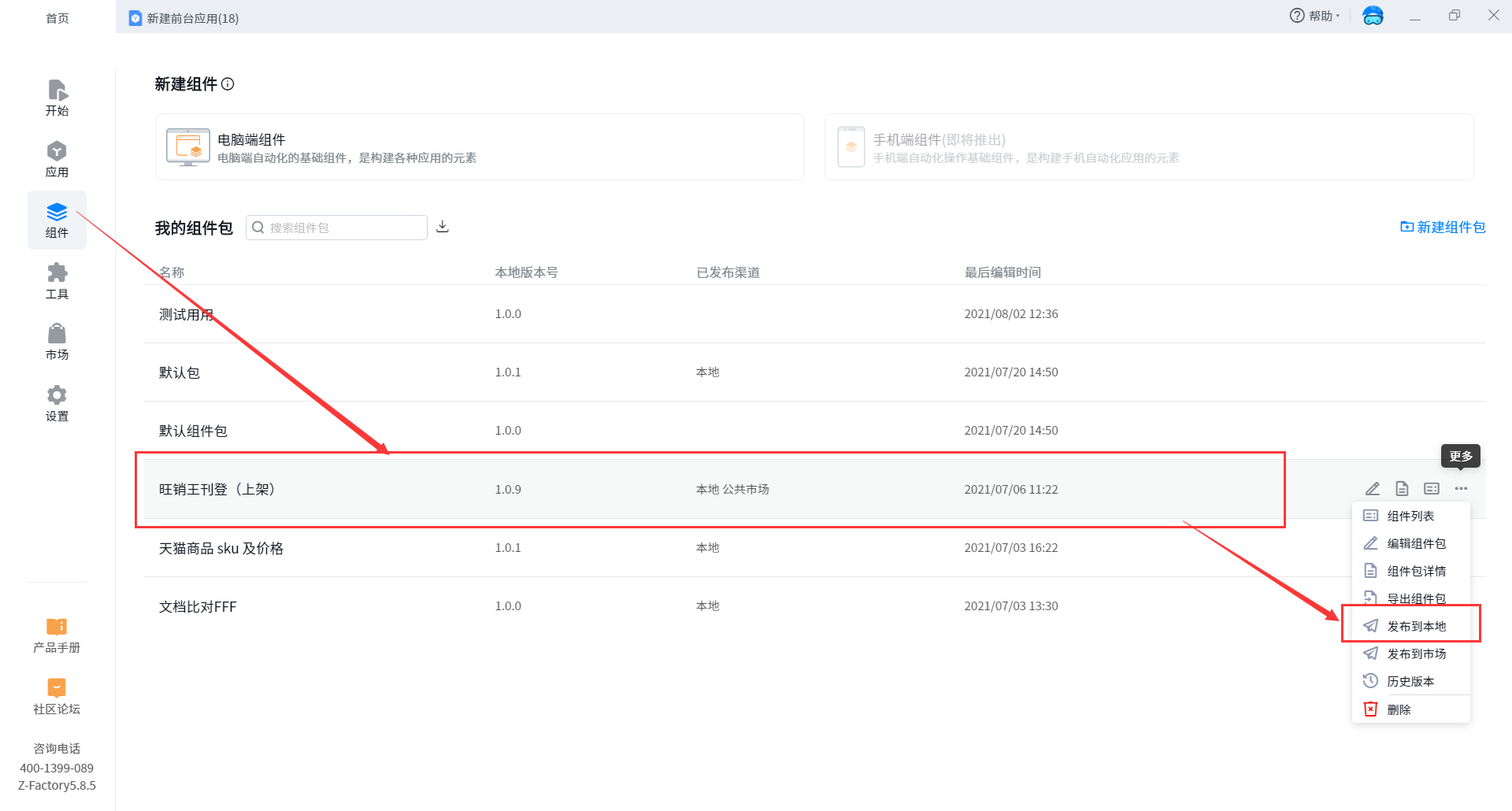

1. You can view more through the component package list under the home page - component page, and click publish to local for use. When publishing to local, the program will automatically add a minimum version number to the currently published component package to facilitate the version management of the component package.

2. Click publish to local to finish publishing, which can be displayed in the & ldquo; Self built components & rdquo; The steps are as follows:

•Enter the edit process application interface

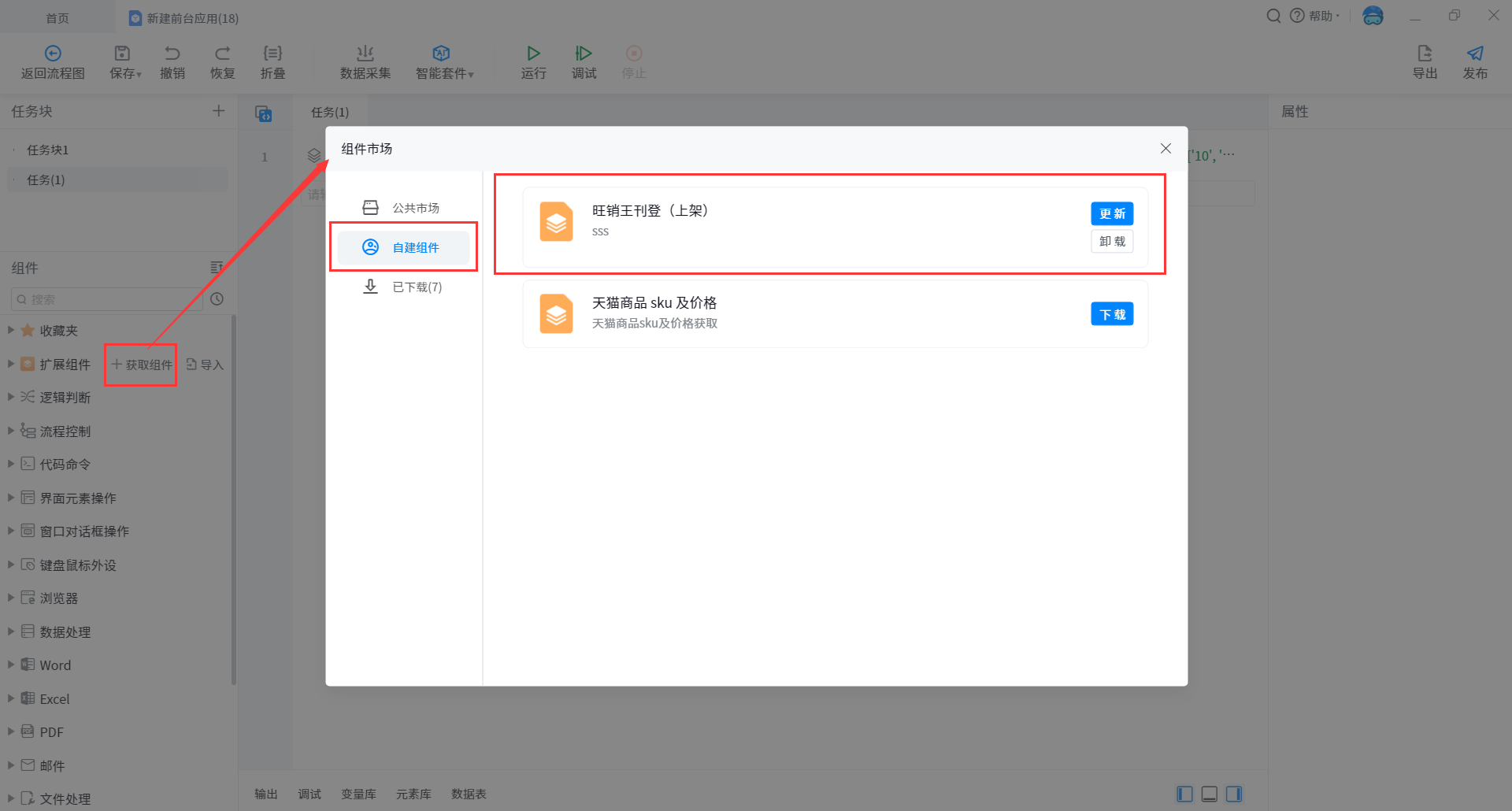

• Click & ldquo; Extension components & rdquo; & ldquo; next to the menu+ Get components & rdquo; Enter the component Market

• Click & ldquo; in the component market; Self built components & rdquo; Tab view and publish to local component package

• Click download component package to download the component package to the local market component warehouse. At the same time, the component package in the list changes to uninstall, and the component package can be unloaded in the list.

• Components available in the market & ldquo; Downloaded & rdquo; It can be viewed under the tab or in & ldquo; Extension components & rdquo; View under menu.

• Downloaded component packages can be deleted by uninstalling market components.
