Version upgrade compatible

1、 Compatible process

Z-factory5.8.0 is a large version, which optimizes many functions, including self built components. In order to facilitate user management of self built components, the concept of component package is introduced, and the development and use are distinguished, which is more in line with the habits of developers. In order to be compatible with self built components of lower versions, developers need to subcontract existing components at the home page - components after upgrading, After subcontracting, the component package can be exported and shared to others as needed. At the same time, it can also be published locally for your own use. Several compatible processes are provided below:

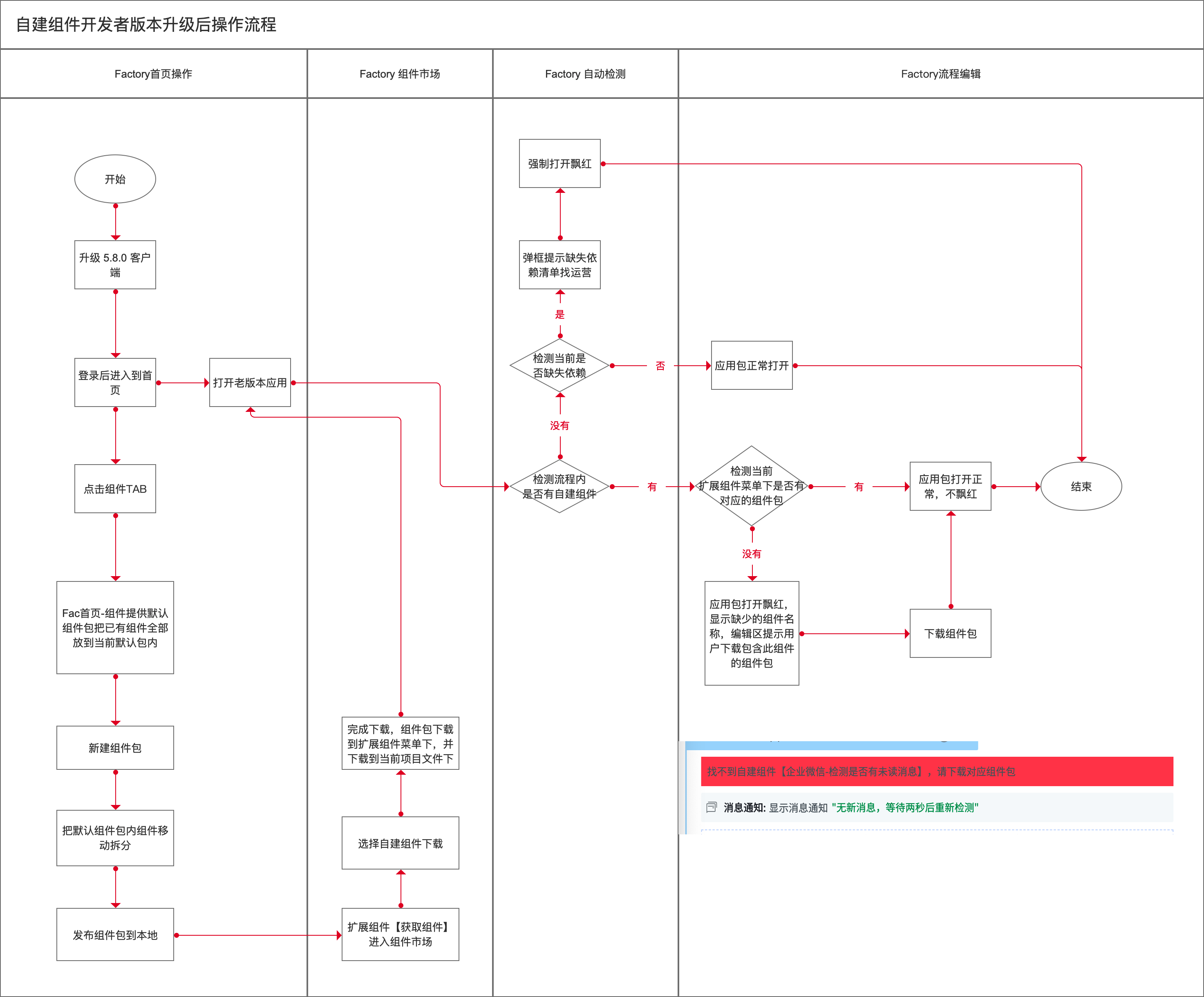

1. Developers have their own self built components and use them in the process. The processing process after upgrading:

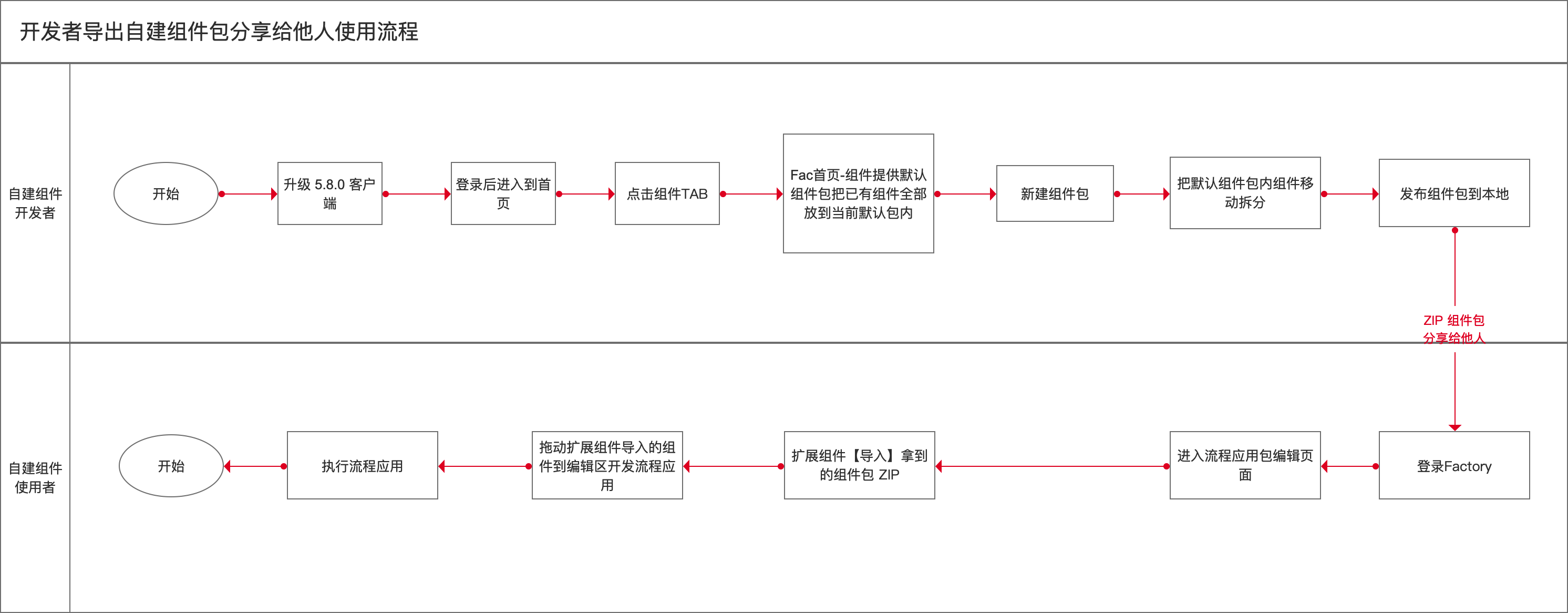

2. Developers share the exported self built components with others

2、 Application process compatibility

1. Version 5.8.0 can open the application executing version 5.7. X. because 5.8.0 upgrades the client dependent environment, it will detect whether the environment meets the application execution conditions during execution. If not, the program will give a prompt. As shown in the figure below, you can download the missing dependent environment file and send the file to Intelligence Indeed Technology Co.Ltd. Operators can obtain the required dependent environment package and install it after obtaining the package.

2. In version 5.8.0, open the client development application of lower version. If it cannot be executed or an error is reported:

• Find the plugins file in the z-factory installation directory and copy all the data in the file.

Location: & ldquo; 5.8.0\Z-Factory\resources\app.asar.unpacked\resources\rpa-engine\rpa-engine-5.8.0.snapshot0717\plugins”

• Then find the z-sdks file in the user directory, paste the contents of the copied plugins file and overwrite the data in the z-sdks file.

Location: you can enter & ldquo;% in the system file appdata%” Press enter to find the z-sdks file.

• Delete the packages folder in the process application package file, and then execute the process application successfully.

• If there are still problems in the process application after completing the above ABC steps, you need to check whether there are red components and determine whether the components are self built components of lower versions or self built components shared by others.

• If it is determined through step d that it is a self built component shared by others, you need to re obtain the corresponding component package. You can download it through the component market or obtain the zip package from the sharer again; Extension components & rdquo; Import the menu to successfully execute the process application.

• If an error is still reported after step e is completed, you need to view the specific error log and solve the problem, or contact the actual operator to solve the problem.

3. 5.7. X opens version 5.8.0 to create an application processing scheme. Since the upgrade of 5.8.0 dependency environment will generate a dependency environment file list for each application, this dependency list cannot be parsed on the lower version factory, which will lead to process execution failure. Therefore, you can successfully execute the process application by deleting the componentlist.json file in the process application file.
