usage method

The following is the overall use mode of high-density robots. See the deployment manual for specific winserver deployment.

1. First, you need to prepare a Windows server server with sufficient resources. Install the z-bot client on the windows server administrator account. And create corresponding windows server users according to the number of licenses.

2. Open the RDP port (3389) of Windows Server users and allow external connections through password RDP.

3. In the high-density robot module in z-commander, maintain the server address and the account password of windows server user, click Connect, and prompt that the connection is successful, then proceed to the next step.

4. Create a bot account that occupies License Activation in the organizational structure function of the commander.

5. Log in to the created windows server account and log in to z-bot with the user name and password activated by license.

6. After the above steps are completed, the high-density robot can be officially put into use. Create and distribute tasks in the task management function of the commander, and the tasks will be executed on the high-density robot.

The task creation process consists of 3 steps, as shown in the following figure.

Select the task execution method according to the actual situation, including immediate execution, scheduled execution and manual execution.

Select the task allocation method according to the actual situation, including dynamic allocation and designated robot. For dynamic assignment, tasks will be assigned to idle robots for execution; For the specified robot, the specified robot performs the task.

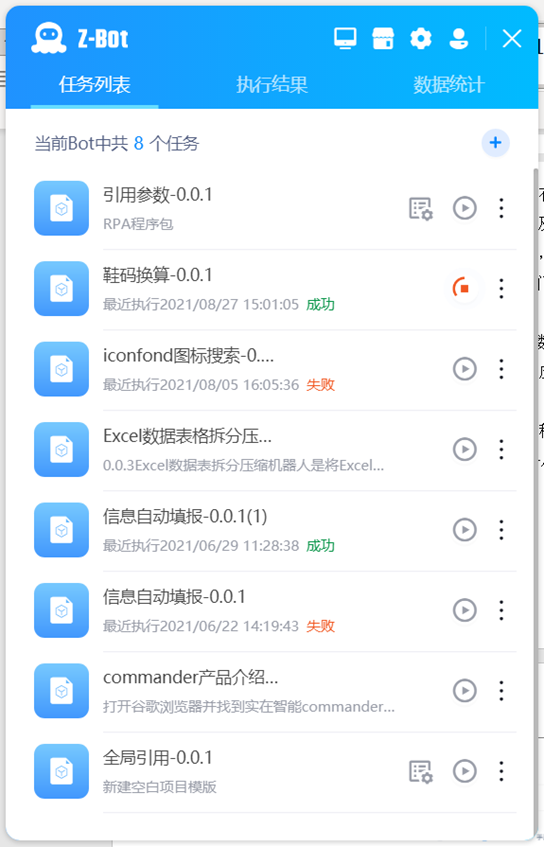

When creating a task, it will be distributed to the BOT according to the specific settings of the task, and the bot will execute the corresponding task, as shown in the following figure.
