usage method

one. task parameter transfer process configuration

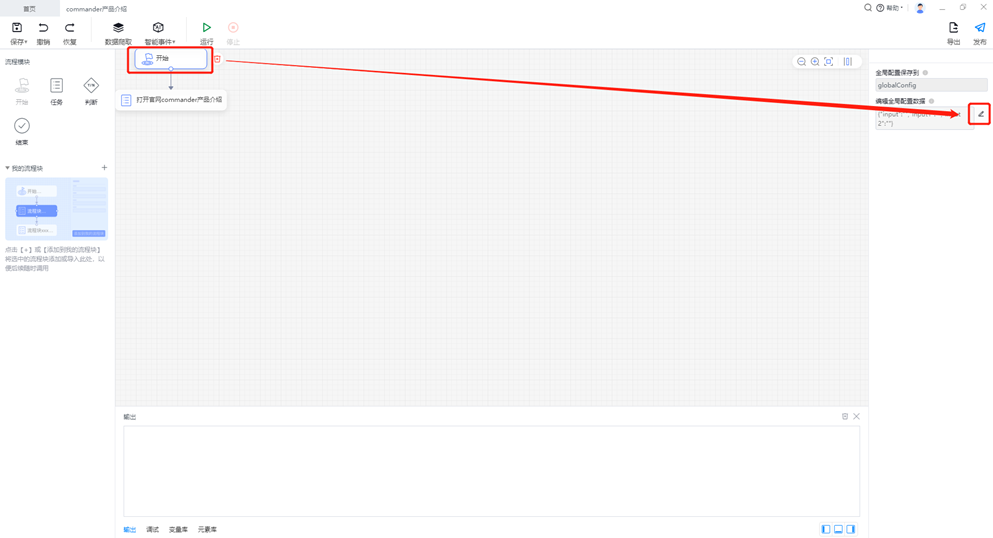

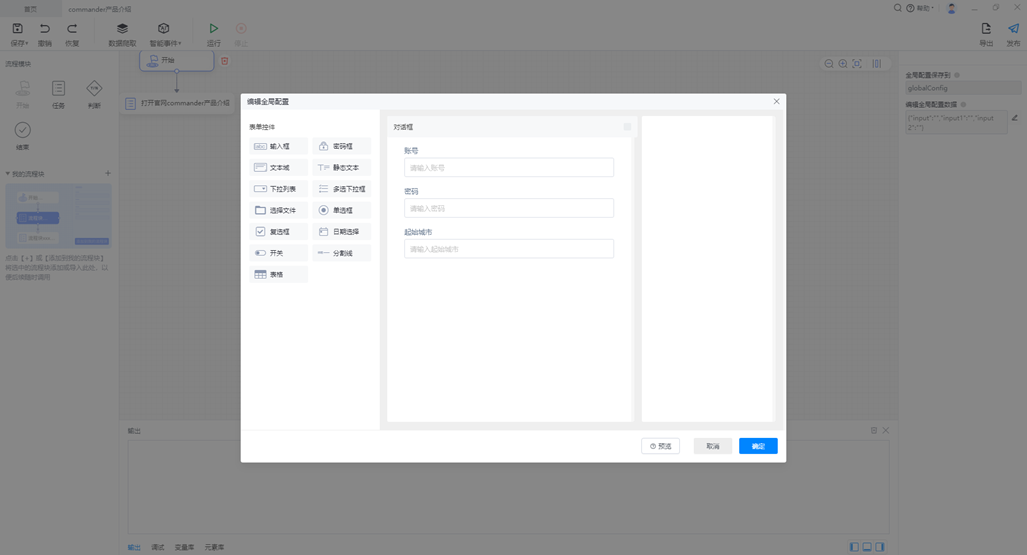

1) Click the start task block and click the configuration icon in the right attribute bar to enter the interface of editing reference parameters.

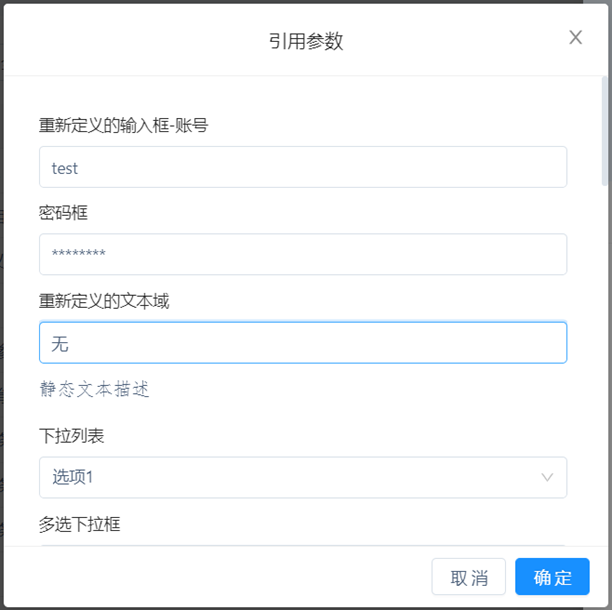

2)   According to the specific business settings, the required parameters are transferred to the specific process.

two、botset upTransmission parameter

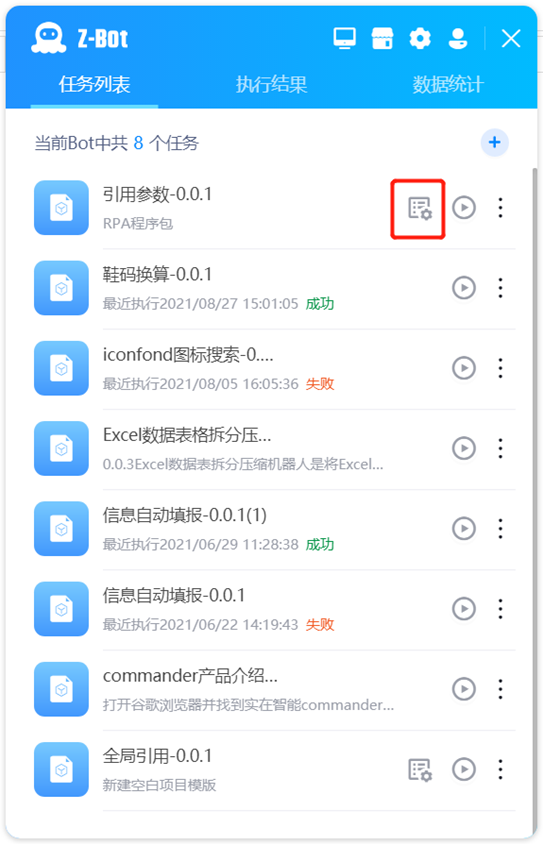

If the task uses an application package with reference parameters, the task will display the icon of reference parameter settings. Click to configure the corresponding reference parameters. After configuration, the reference parameters of the task will be updated according to the configuration values, and the latest updated configuration values will be used when executing the task.

three、commanderset upTransmission parameter

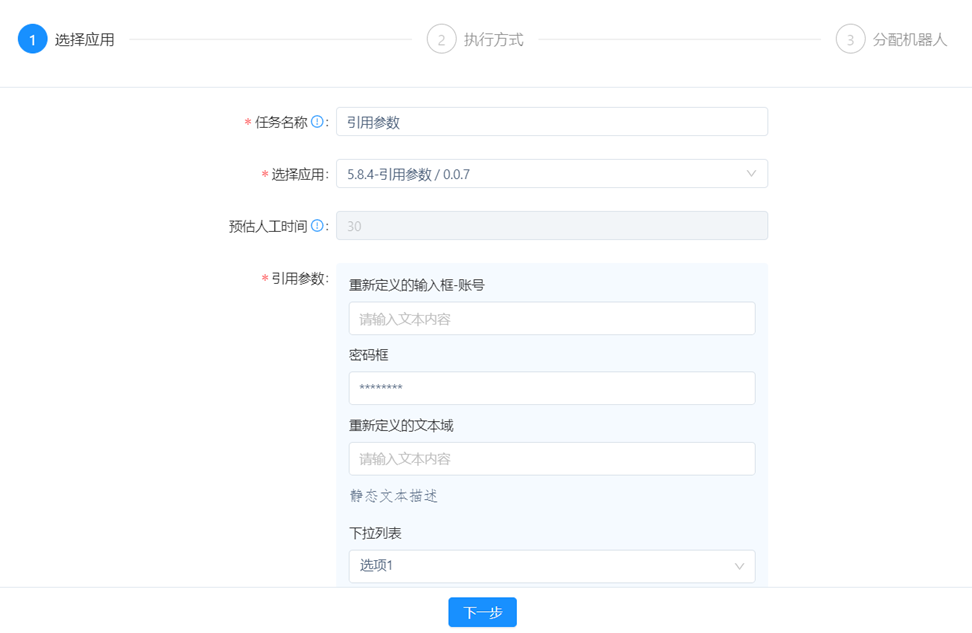

When creating a new task, if the selected application has reference parameters, the commander will require to fill in the reference parameters, as shown in the figure below.

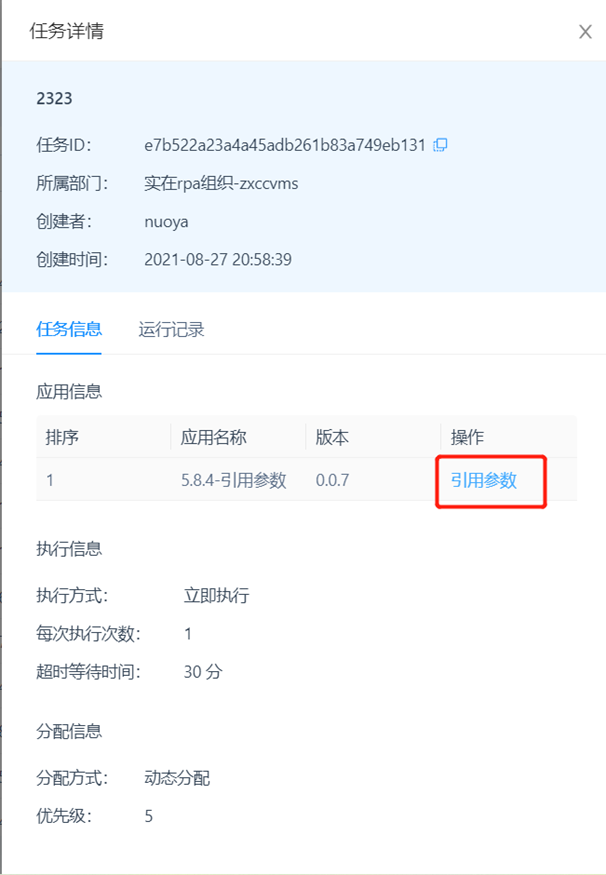

For the created task, you can modify the reference parameters. Click the specific task details to be modified. For the corresponding application, if the application package has reference parameters, the operation will be displayed.

Click & ldquo; Reference parameter & rdquo; The edit pop-up window appears. You can modify it directly.
